S-50/POWER HOUSE AREACapable of generating variable frequency power, the Power House Area included more than 15 structures. S-50, a liquid thermal diffusion plant, was to serve as a feeder process to the electromagnetic plant, Y-12 and was originally powered with steam from the Power House Complex.

Learn More

HOUSING CAMPSDesign, construction and operations of a facility the size and magnitude of K-25 would require a massive labor force. As the site was rural and isolated, worker housing was an early and urgent priority.

Learn More

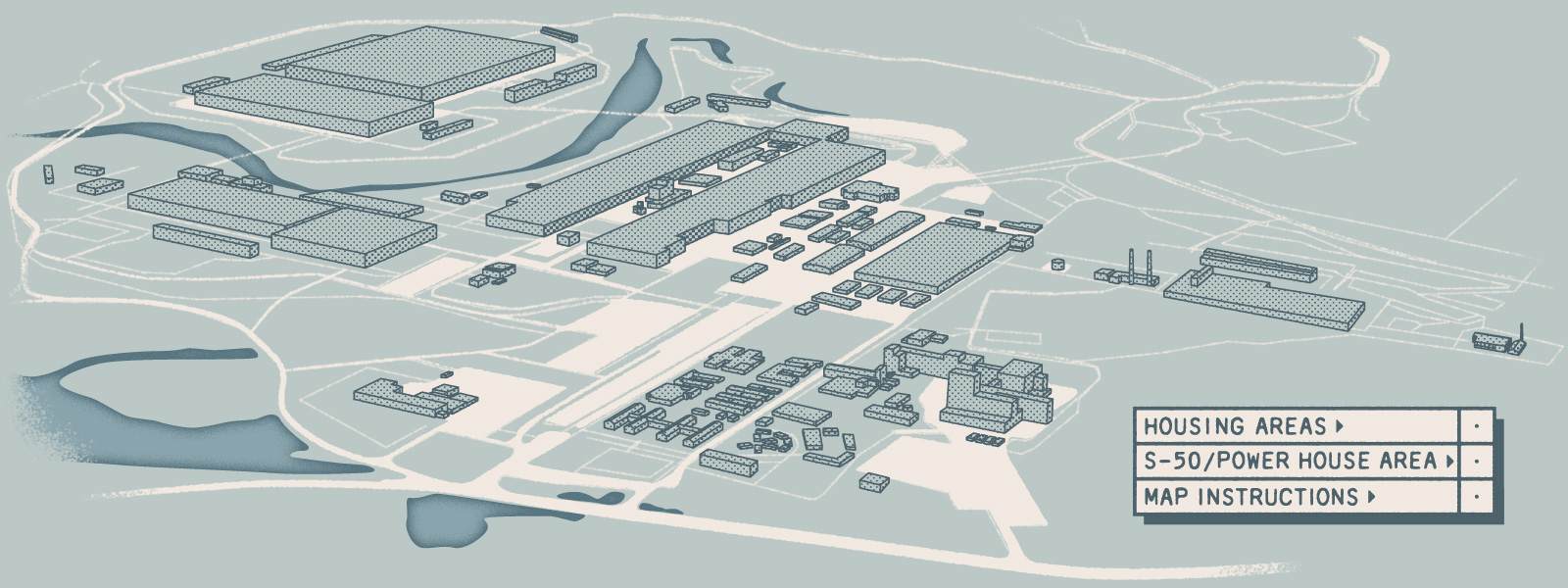

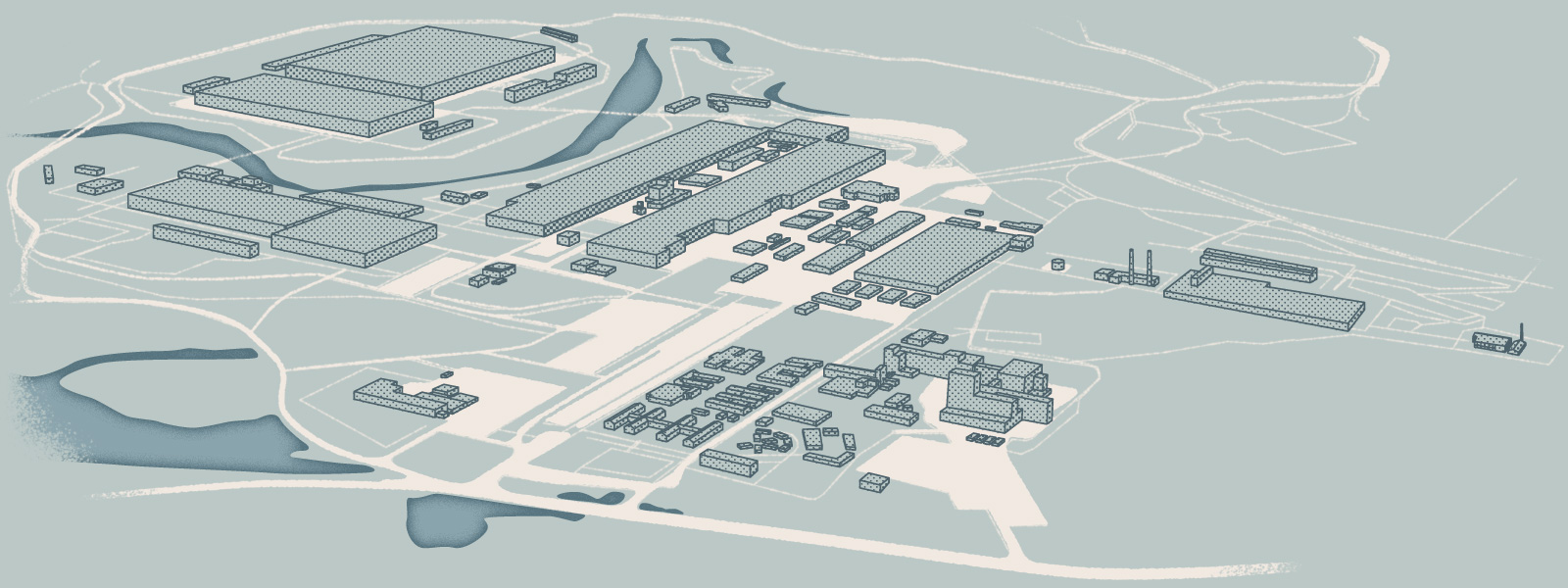

INSTRUCTIONSHover over any of the orange hotspots to reveal the name of the corresponding building along with a brief description. If you would like to see photos or learn more about a particular building, simply click the link that follows the brief description.

K-27Before construction was complete on the site's first gaseous diffusion building, K-25, design and construction of a second process building had begun. The need for more production capacity and the urgency to end the war drove the construction of K-27.

Learn More

COOLING SYSTEMSK-25 contained thousands of compressors driven by electric motors which generated vast amounts of heat that had to be removed to maintain the process gas at the proper temperature. To remove excess heat from the process gas stream, a dual cooling system was employed.

Learn More

K-25Constructed in less than two years (1943-1945), the four-story U-shaped structure became the center of operations for the Manhattan Project's uranium enrichment using the gaseous diffusion method.

Learn More

K-1024Built in 1944, the K-1024 Maintenance Shop would address instrument repair and calibration for the gaseous diffusion process.

Learn More

K-1101In this case "air conditioning" did not involve providing cool air, but conditioned or treated air that was dry. The Air Conditioning Building or Dry Air Plant, K-1101, was located in the courtyard of the K-25 Building.

Learn More

K-1201K-1201, located in the K-25 Courtyard, contained five compressors to provide air to the process building and other parts of the site. Compressed air is a common industrial service utility and provides excellent driving force for tools – much better than electric.

Learn More

K-101In the four-story, concrete-block building, engineers would distill the UF6 to strip volatile impurities, creating a purer feed material. However, manufacturers produced a higher quality feed material than expected and the system was never operated.

Learn More

K-601K-601 was constructed near the "open" end of the "U" and the building had two distinct functions – eliminating pressure surges from process lines and equipment and removing and packaging depleted uranium or "tails" at the end of the enrichment process.

Learn More

K-1401Project engineers designed and constructed a Conditioning Building (K-1401) to clean and condition piping and equipment prior to installation in the K-25 Building.

Learn More

K-1008 (A-D)K-1008-A, B, and C were built in 1944-45 as change houses for the construction workers building the gaseous diffusion plant. K-1008-D was built in 1945 as Cafeteria #2. By 1948, the building was used as a lunch room and storage area.

Learn More

K-1002The original cafeteria building was erected between January and August 1944. In the middle of 1945, it was enlarged and redesigned.

Learn More

K-1003The dispensary was a one-story wood frame building on concrete piers with a hipped roof, and housed complete medical facilities for an industrial site.

Learn More

K-1004 (D)Scientists, chemists and technicians in the K-1004 (A-D) laboratories performed analyses on feed materials, chemicals and final product used in the uranium enrichment process.

Learn More

K-1004 (A-C)Scientists, chemists and technicians in the K-1004 (A-D) laboratories performed analyses on feed materials, chemicals and final product used in the uranium enrichment process.

Learn More

K-1001The two-story, four-wing administration building, K-1001, was built from 1943-45 and contained more than two acres of floor space. It was the main office building for the site.

Learn More

K-1021Construction of K-1021 began February 2, 1944 and was completed September 7, 1944, and was commissioned as an ambulance garage and fire house.

Learn More

K-1408Nitrogen was used to protect the interior of process equipment from contamination by moist air, as a pump sealant for purging equipment of process gas, and in certain instruments.

Learn More

K-1501The K-1501 Steam Plant provided steam for heating purposes, including space heating for employee comfort and heating of some process lines outside of cell housings.

Learn More

K-33A final process building was added to the K-25 Site cascade in October 1954. The K-33 Building surpassed K-25 in floor area with 2.8 million square feet.

Learn More

K-31K-31 was placed in service in series with K-29, K-27, and K-25 and contributed to the overall defense and commercial missions until shutdown of the K-25 site production facilities in 1985.

Learn More

K-29The K-29 Building was the third gaseous diffusion facility built on the K-25 site. Like K-27, K-29 extended K-25's enrichment stages to increase uranium enrichment capacity.

Learn More

K-1420Built in 1954, the Decontamination and Uranium Recovery Facility (K-1420) provided radiological decontamination, uranium recovery, and metal plating capabilities for the site.

Learn More

K-1037In December 1947, it was decided to move all barrier production to the K-25 Site. A former warehouse (K-1037), used during the construction of the K-25 Plant, was converted into the barrier production facility.

Learn More

WELCOME TO THE K-25 SITE TOUR

Since the end of World War II, the K-25 Site has evolved and adapted to meet the nation's changing defense and energy needs. Take a tour of the site's ever-changing landscape – from pre-war farms to at-war production facilities to peace-time technology demonstration to environmental restoration, reindustrialization, and historic preservation.

Click HERE to learn more about the historical events that led to the race to build the bomb.

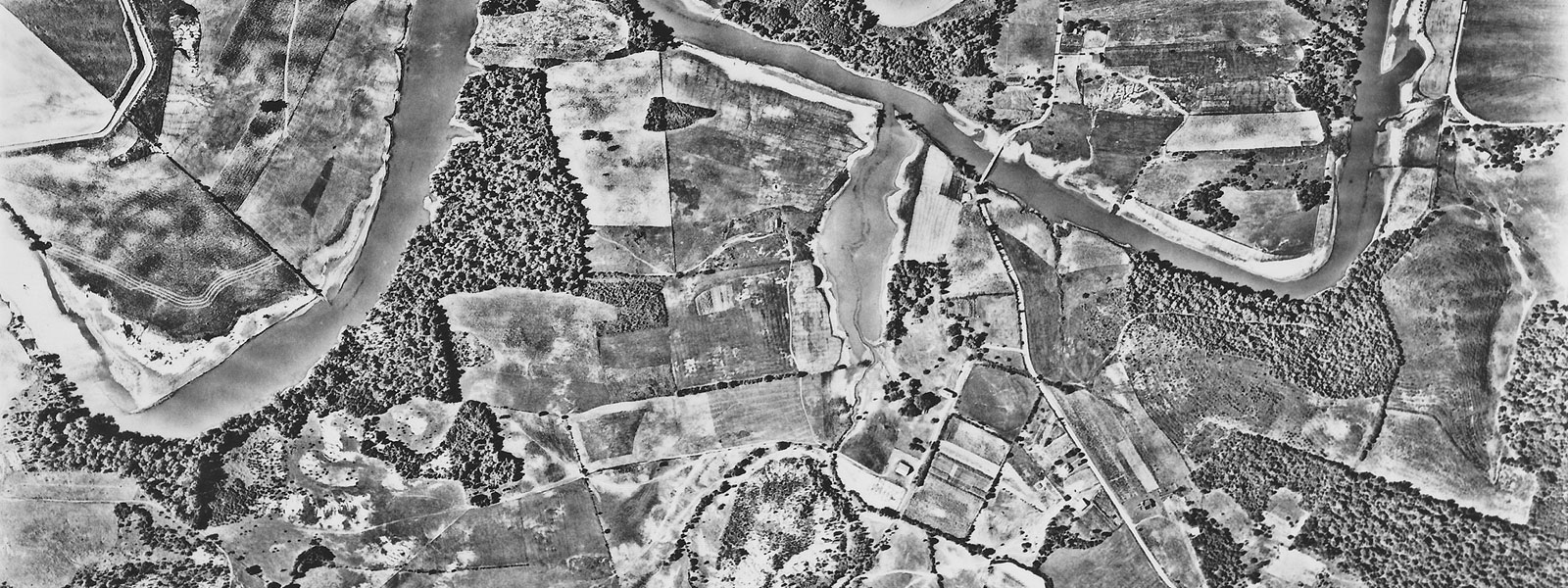

1942

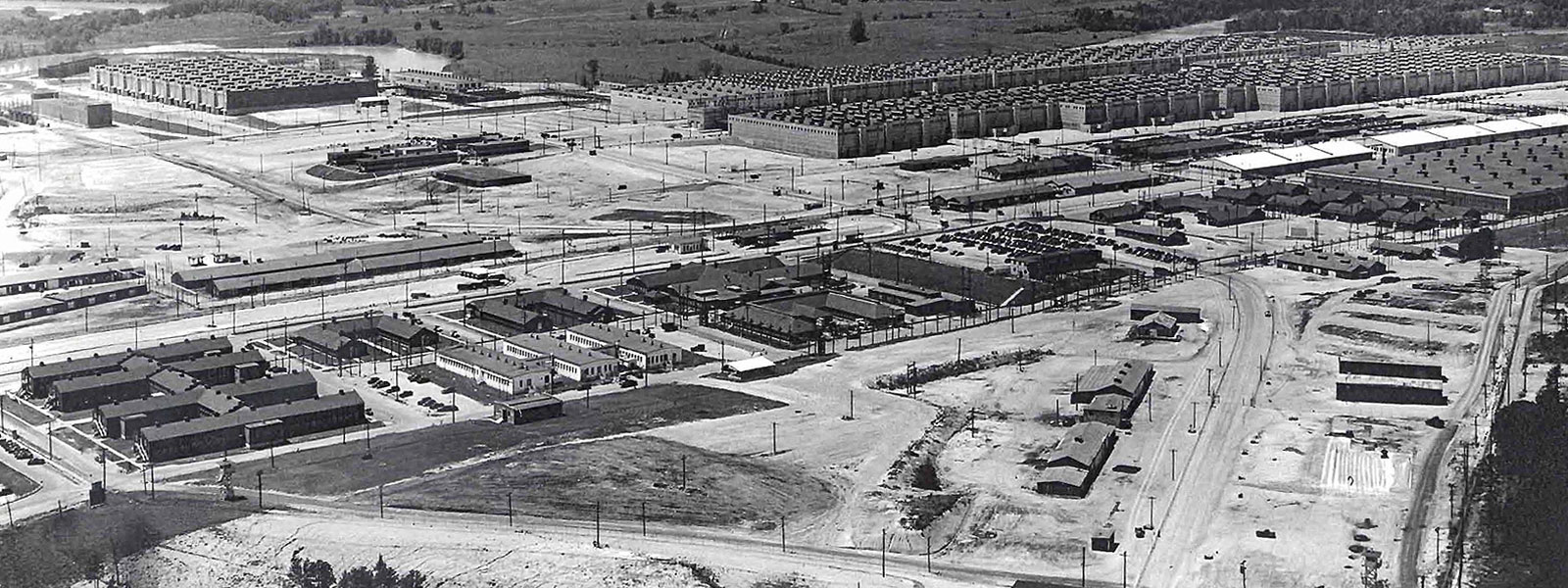

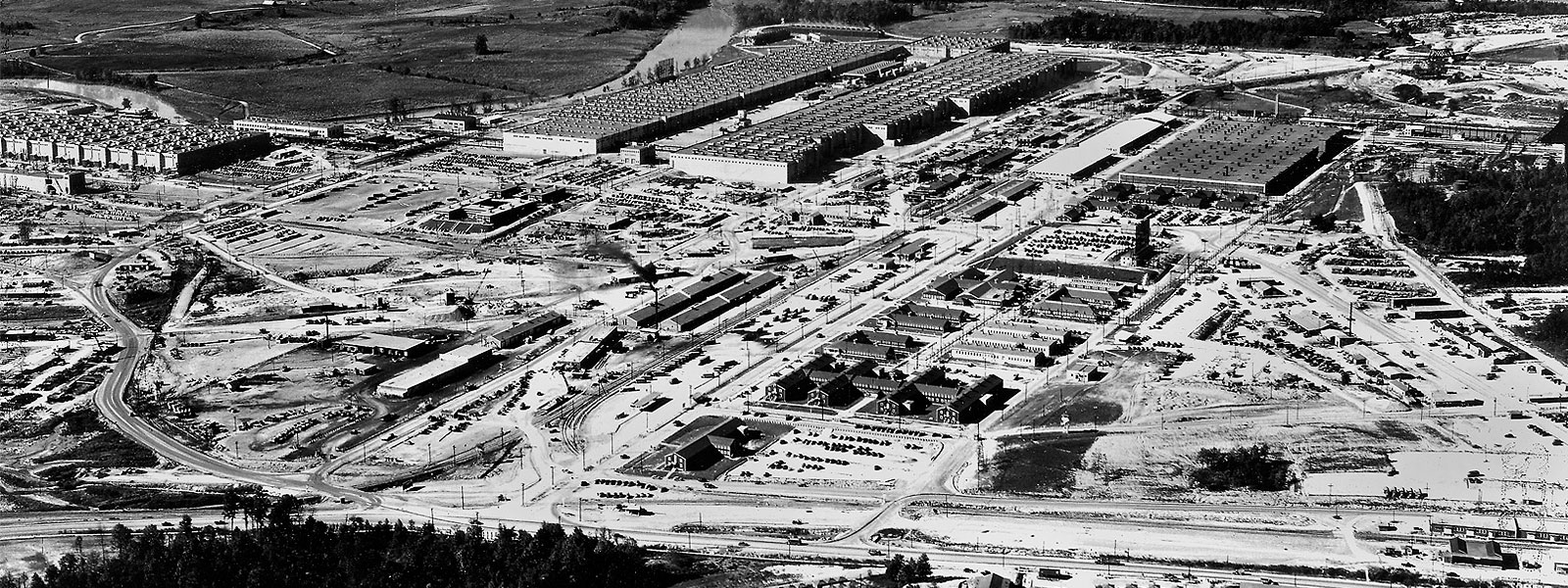

1946

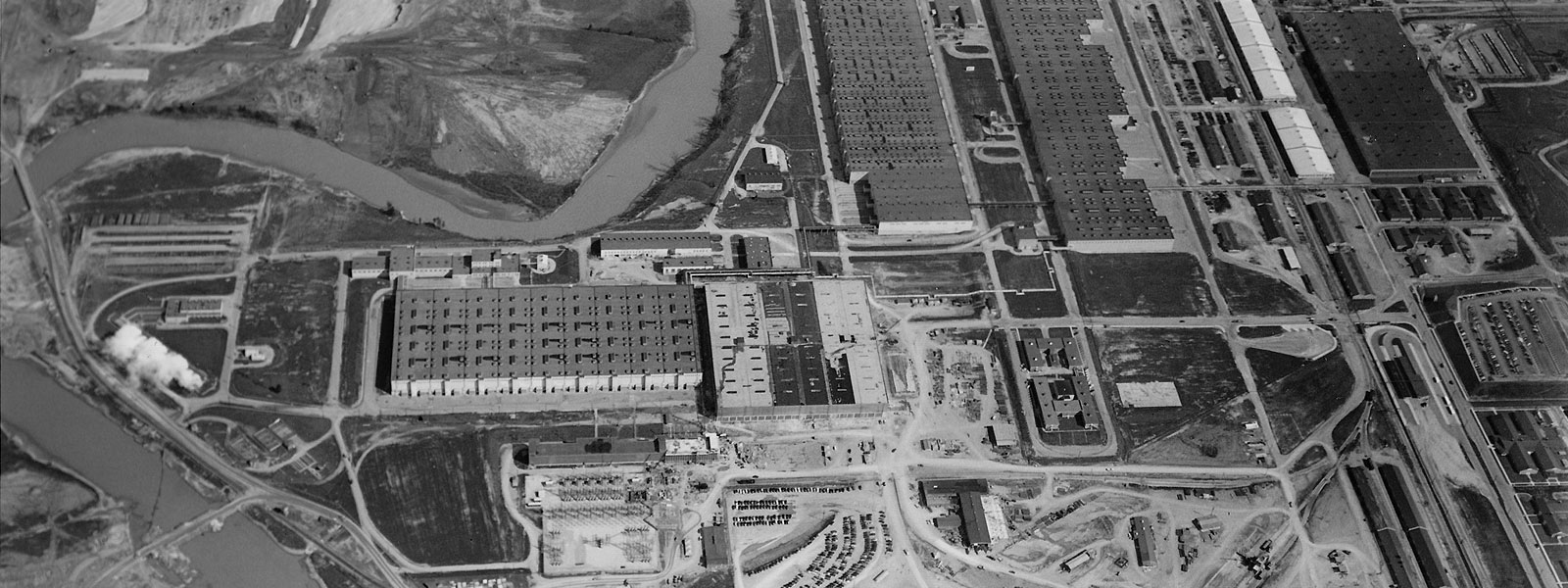

1950

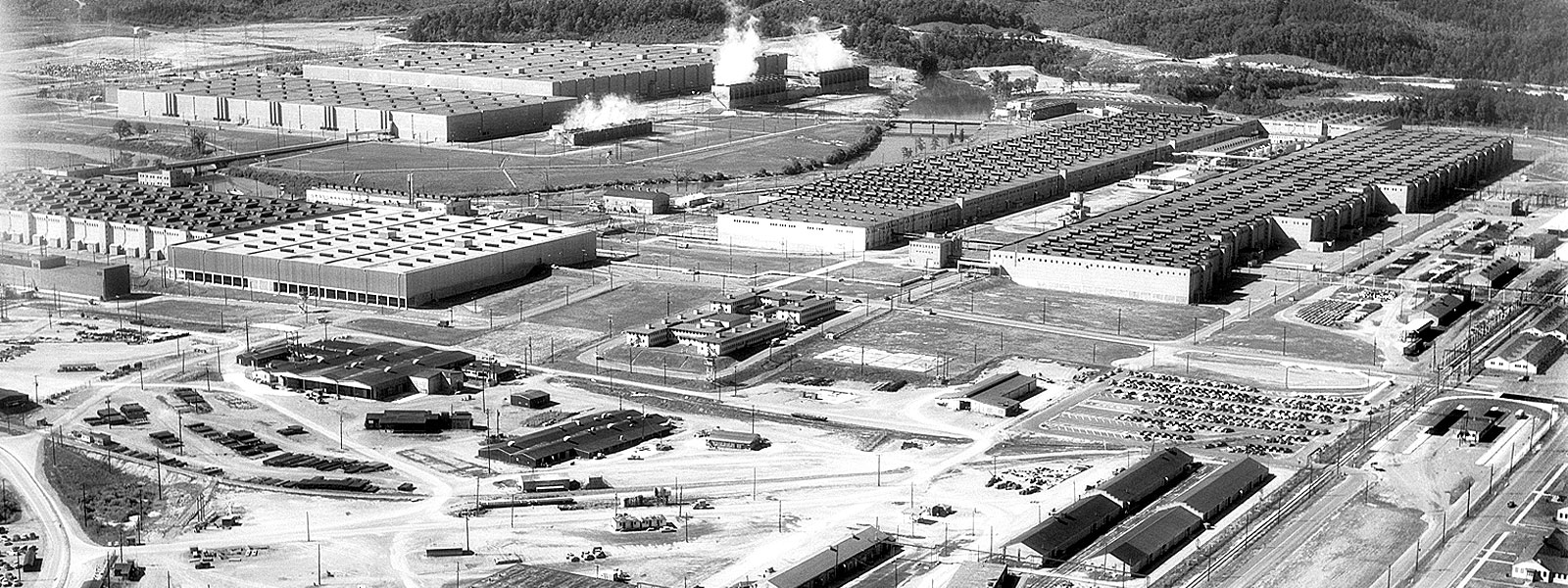

1954

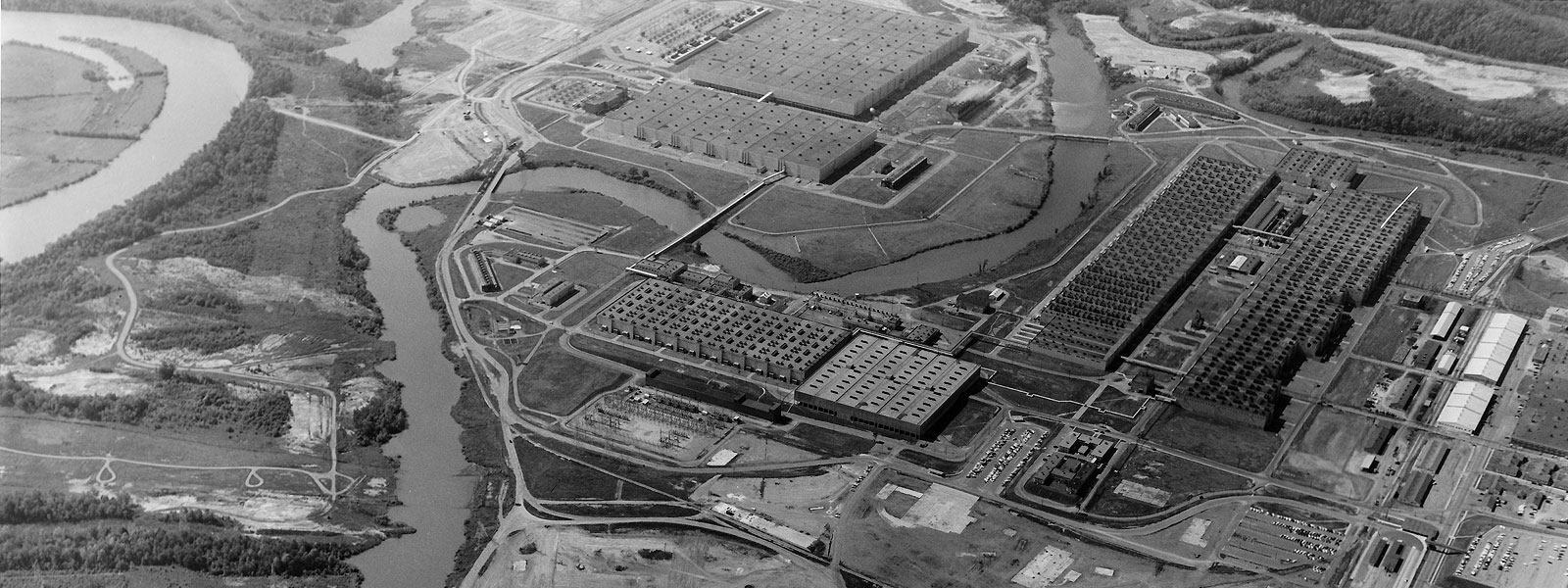

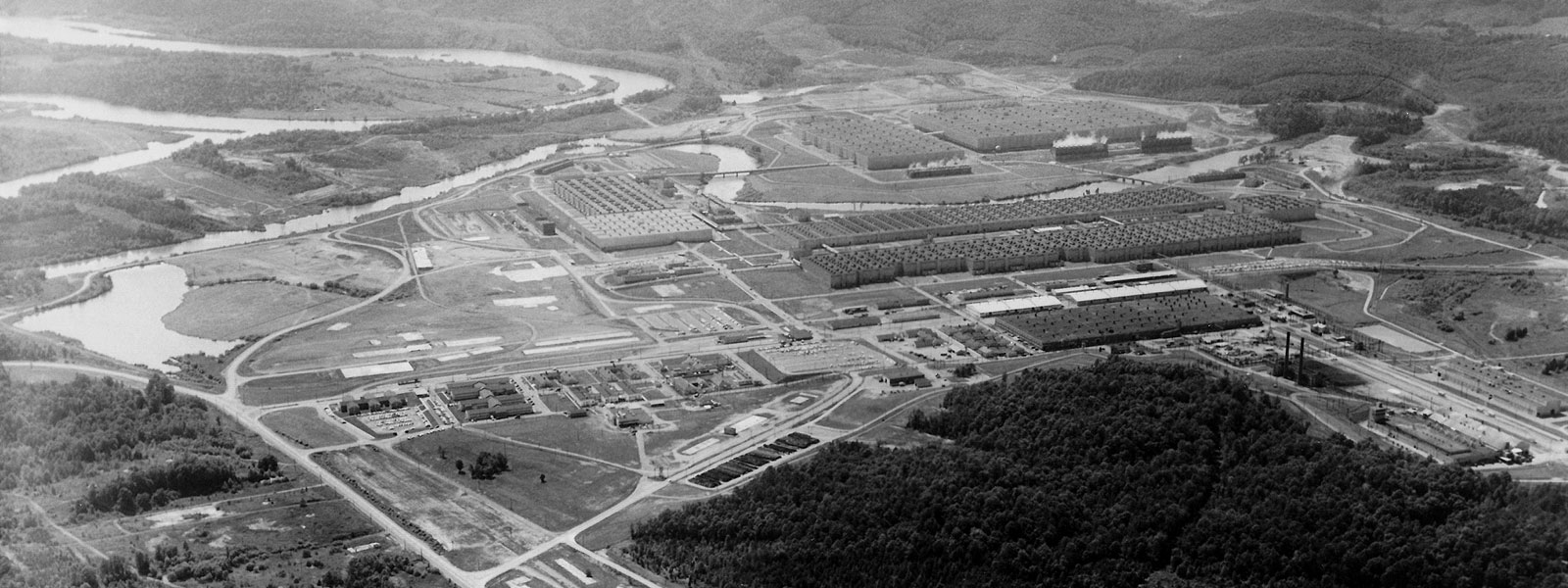

1957

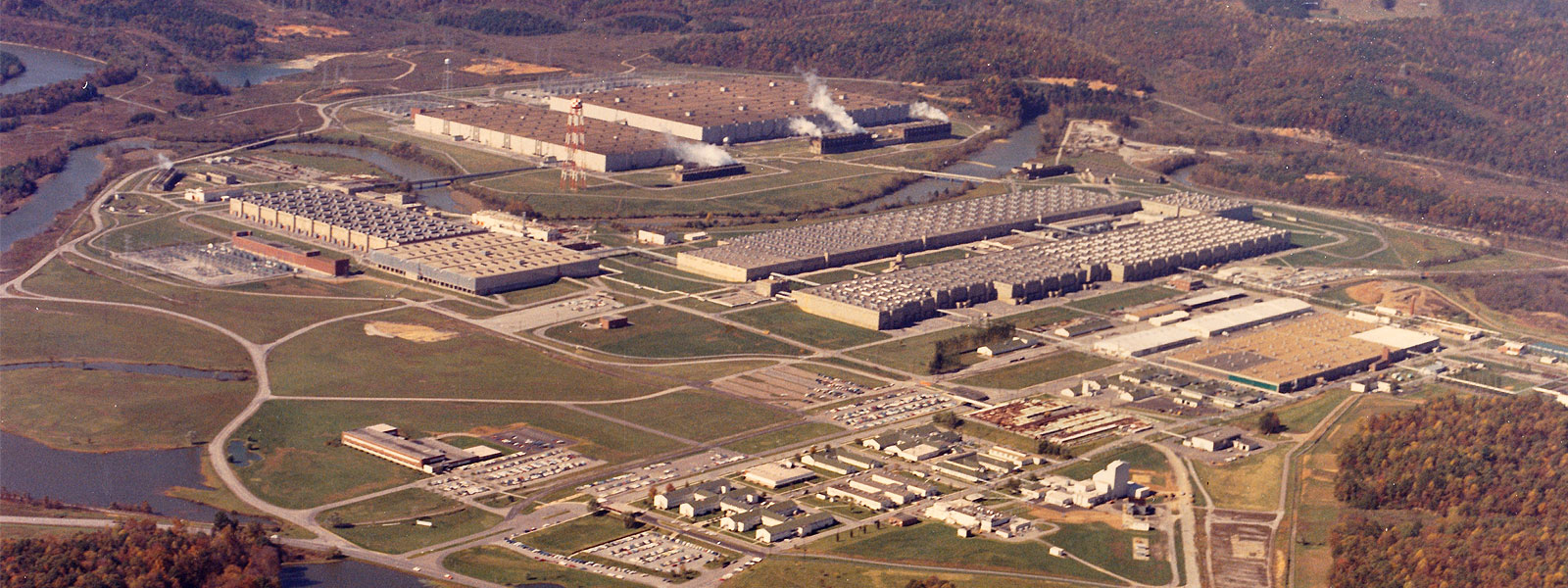

1960

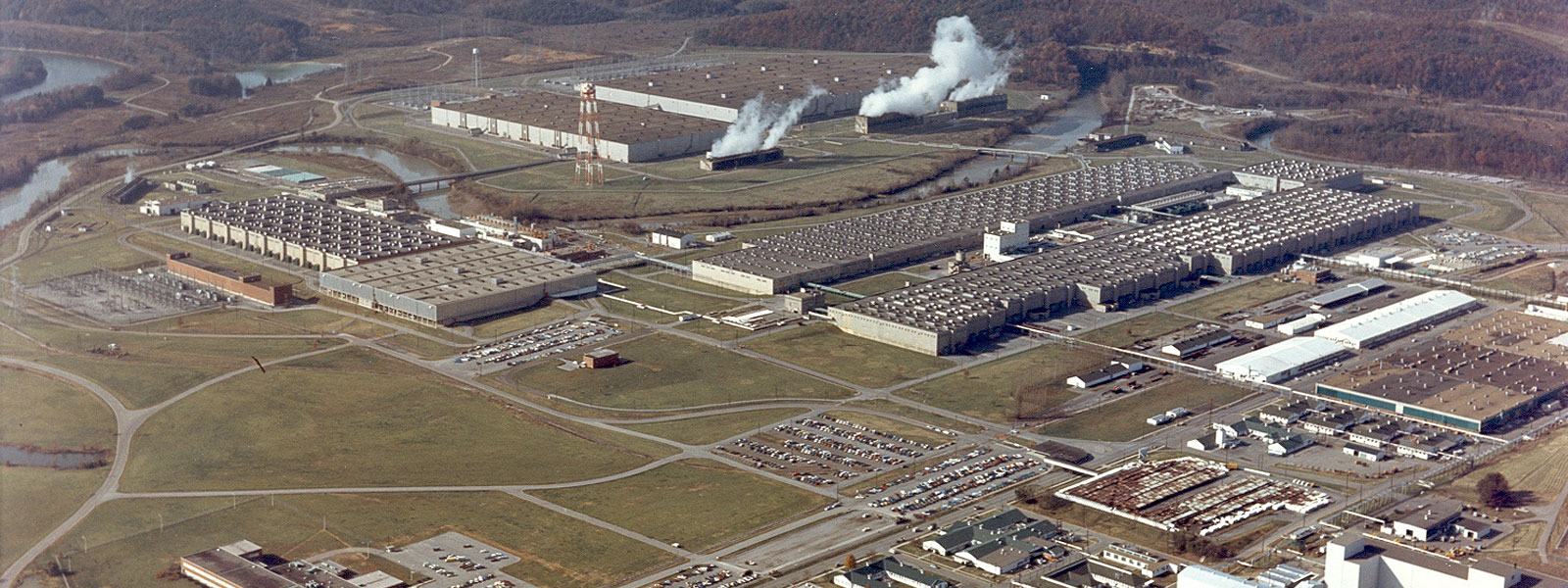

1973

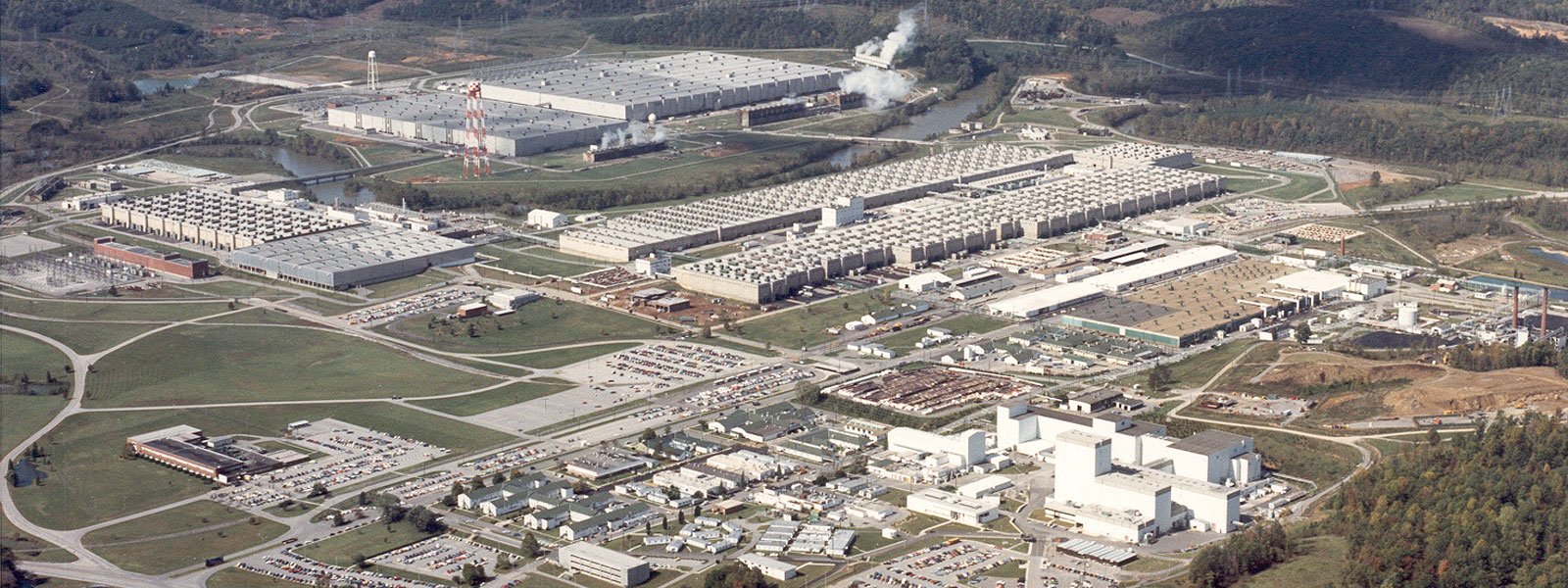

1982

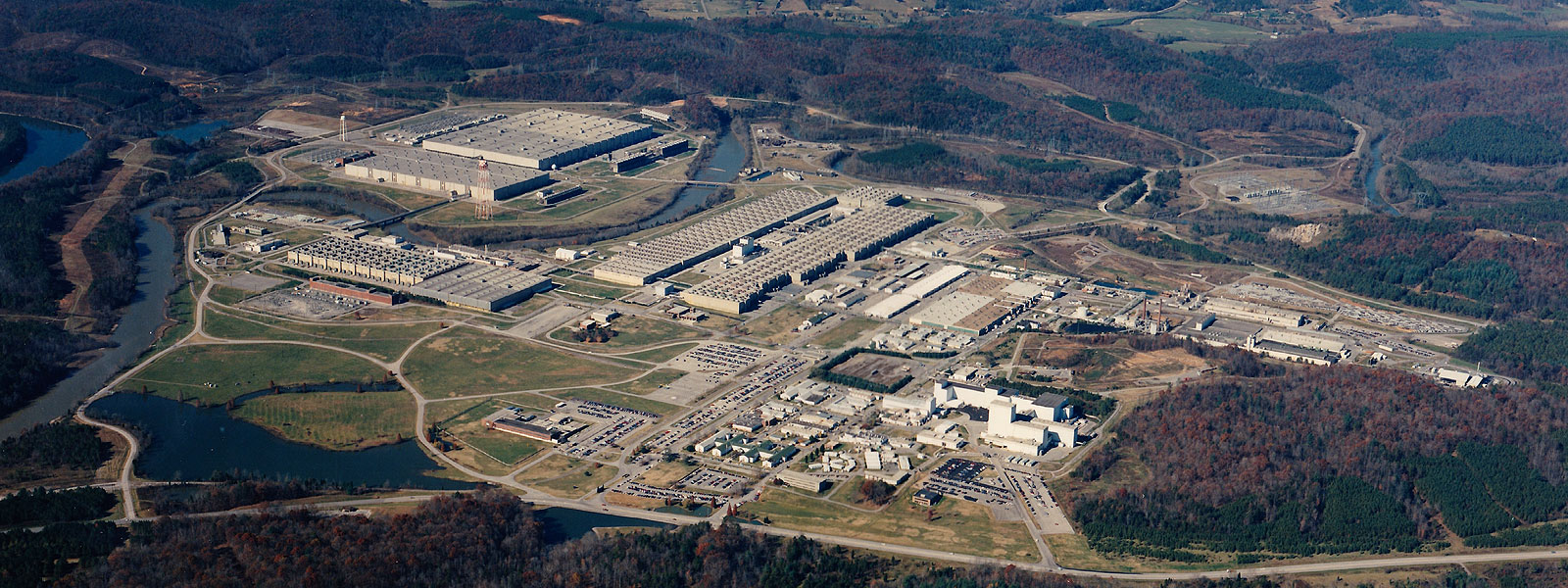

1990

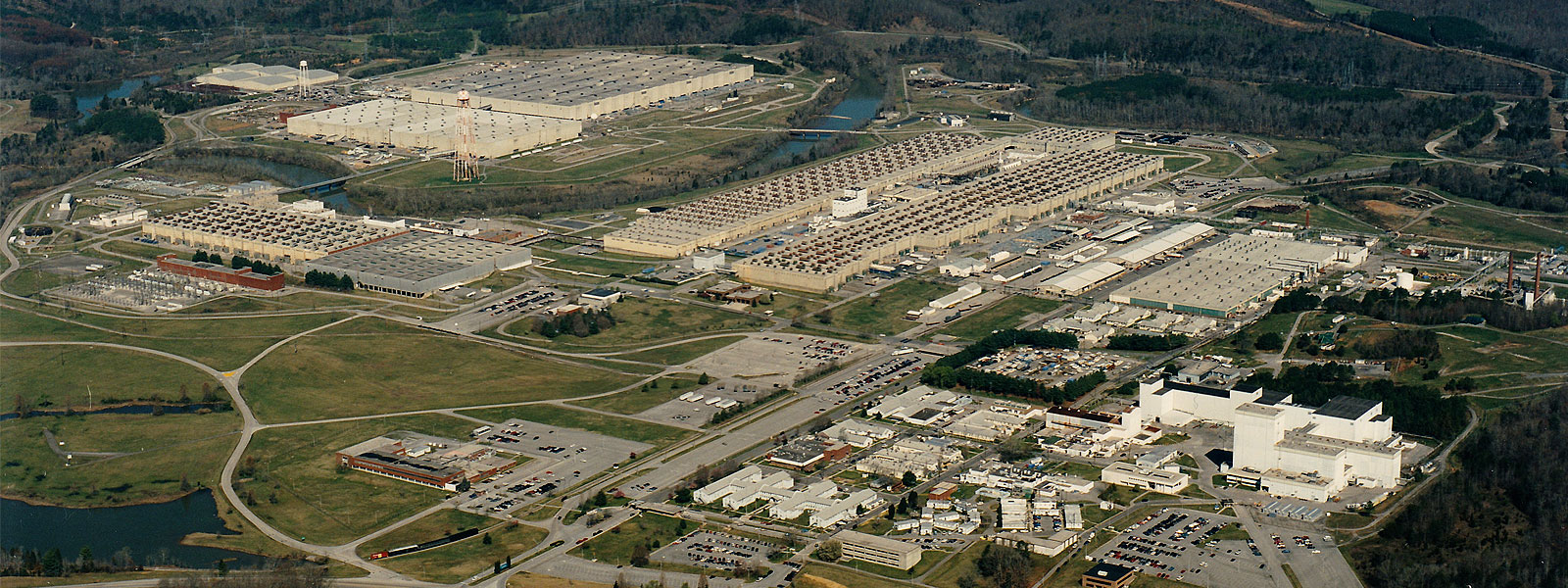

2000

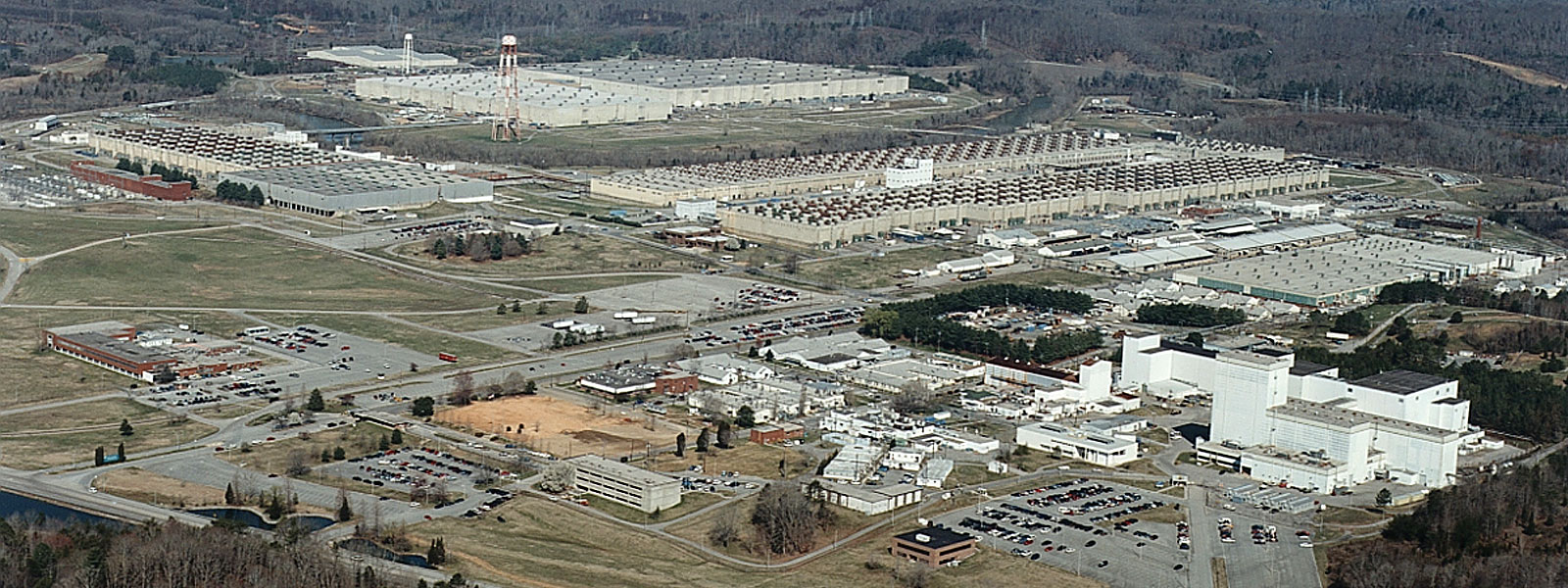

2001

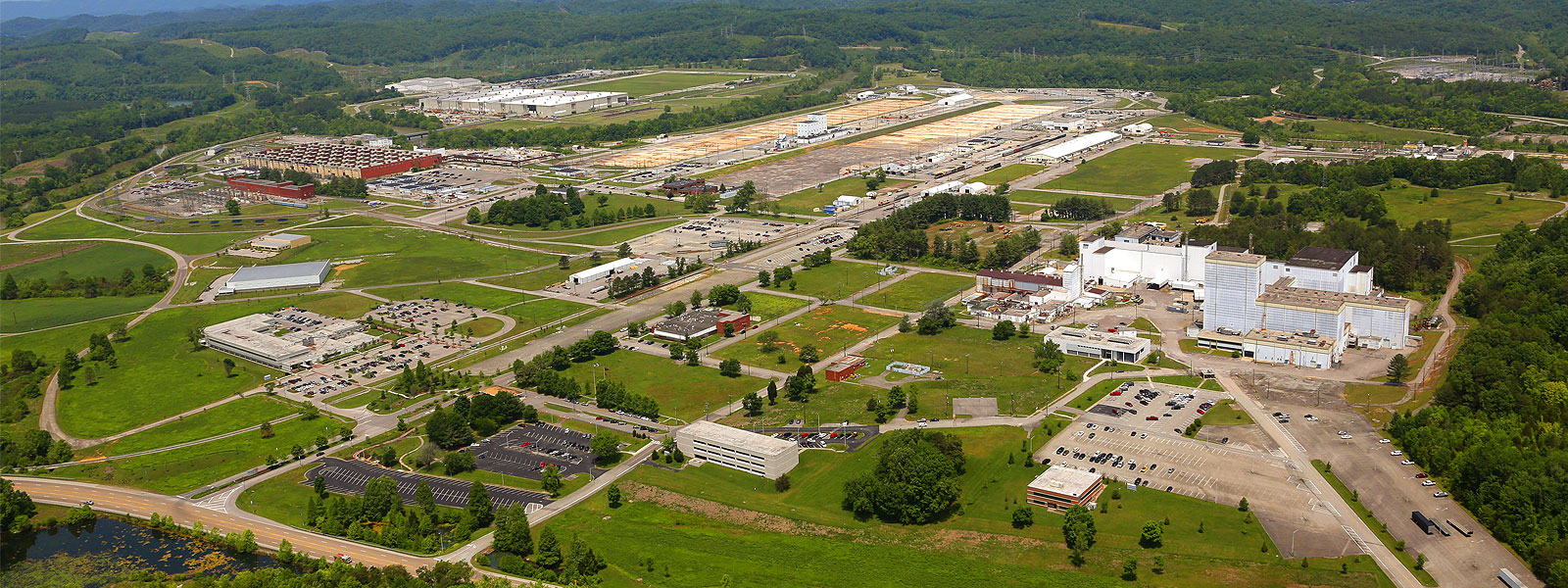

2014

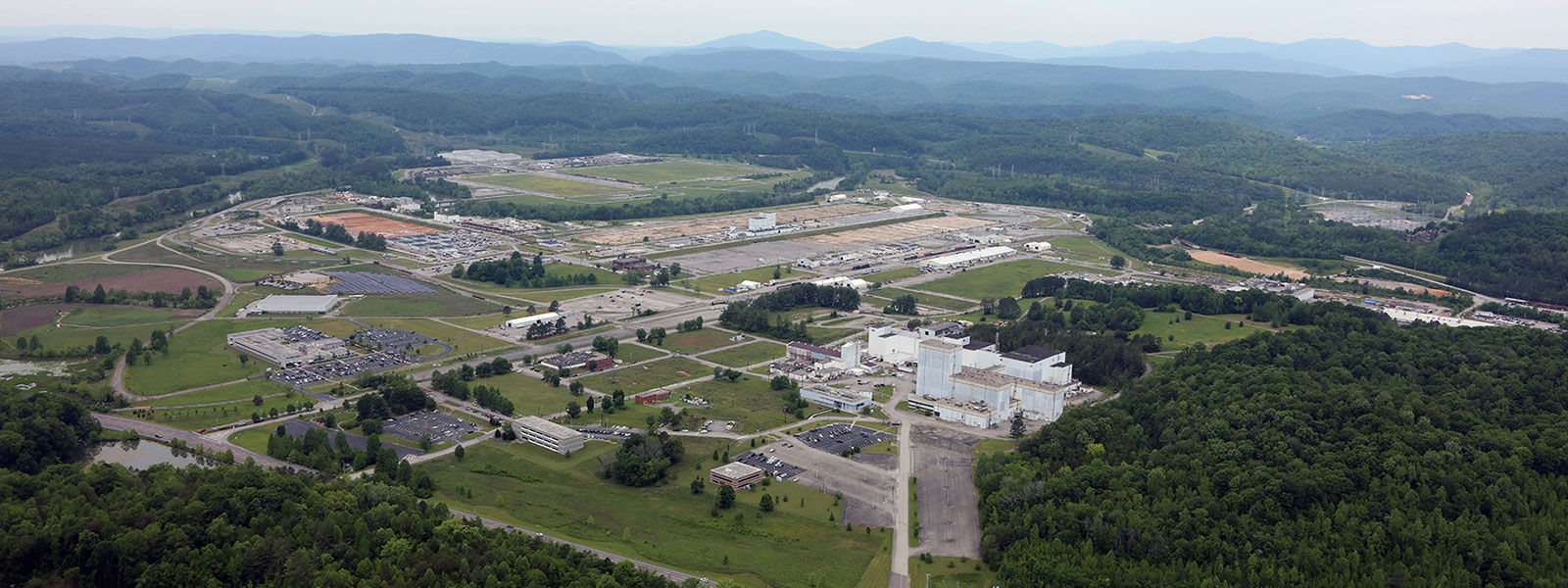

2016

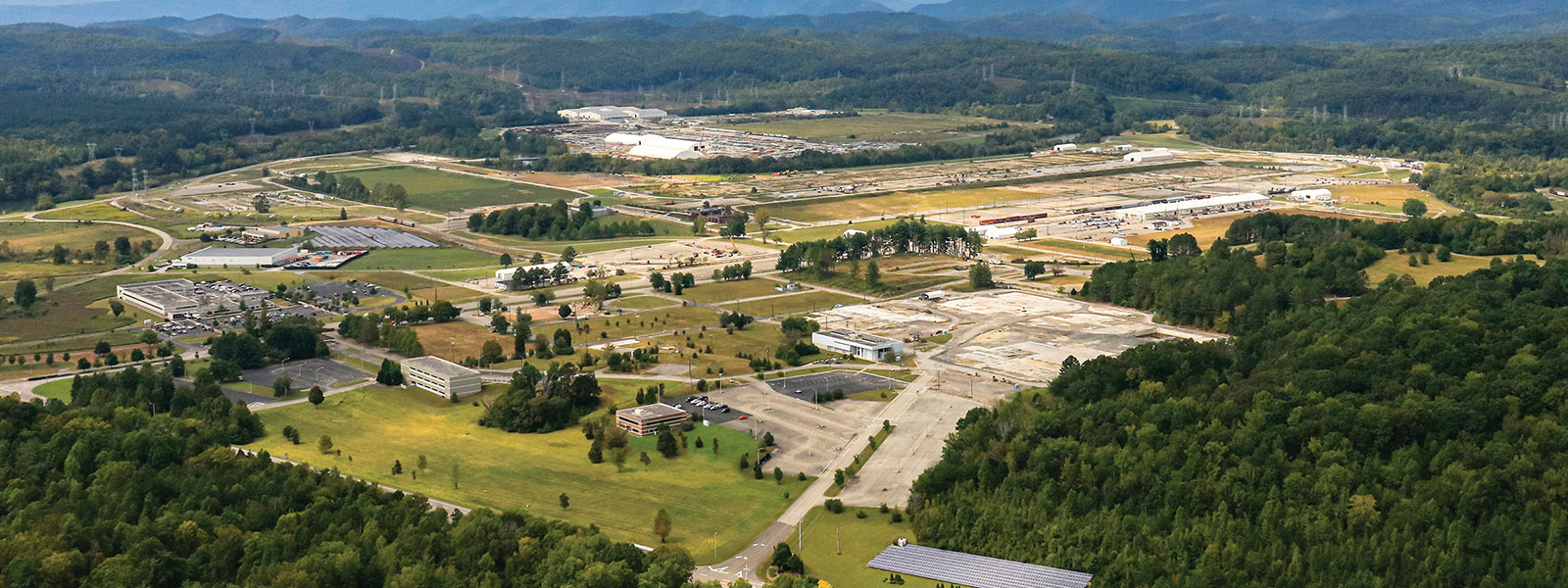

2020

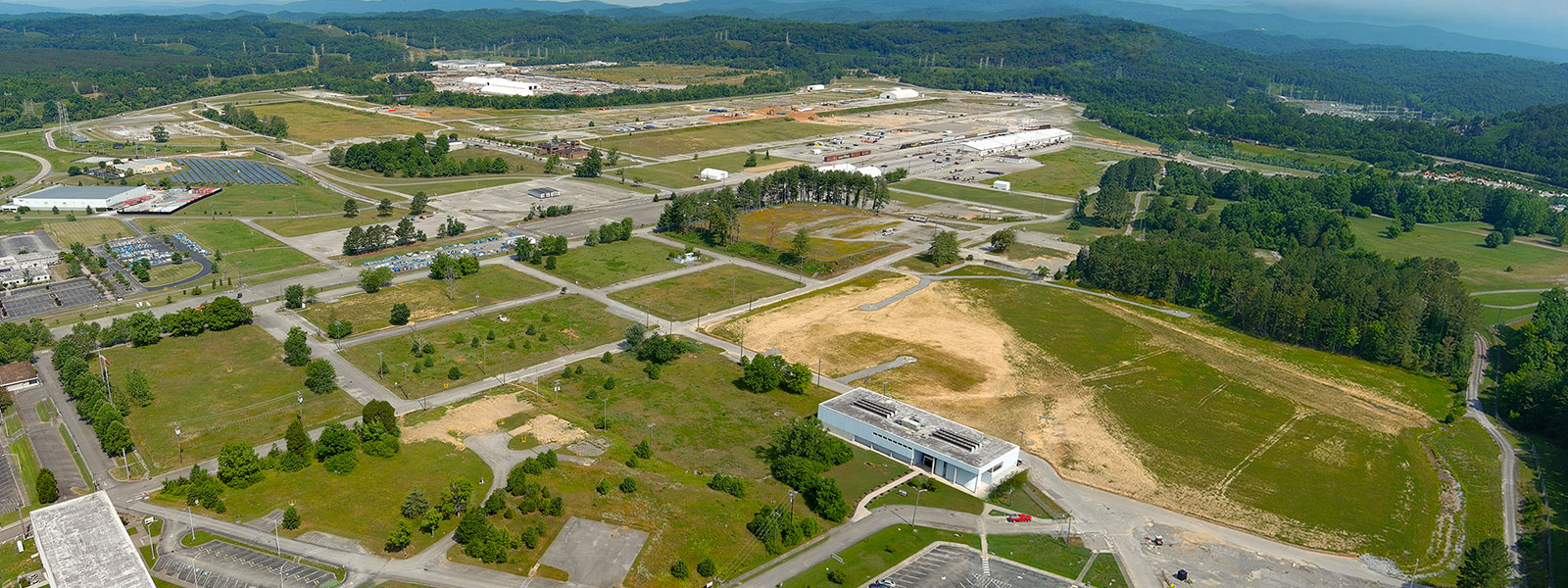

2022
